Grinding Cracks – Causes, Right NDT testing to find them

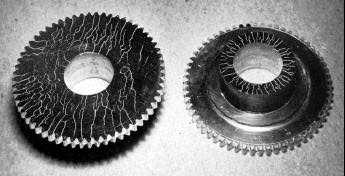

Grinding cracks are typically caused by several factors related to improper grinding conditions. These include using poor-quality grinding wheels, insufficient coolant application, and excessive feed rates during the grinding process. Such cracks are commonly observed on heat-treated and hardened components. These cracks occur due to the excessive heat generated at the surface during grinding, and they appear at a right angle to the direction of the grinding wheel’s rotation. They are typically shallow, sharp, and easily identifiable.

Causes of Grinding Cracks:

• Use of Incorrect Grinding Wheel
• Poor Quality or Glazed Grinding Wheel
• Inadequate Coolant Application
• Excessive Feed Rate
• Heavy Cutting Forces
• Improper Heat Treatment

Problems Associated with Grinding Cracks:

• Fatigue Cracks due to residual stresses.

• Fatigue Cracks due to residual stresses.
• Crack Expansion at later stages.
• Crack Propagation under repeated or cyclic loading.
• More Severe and Intensive than typical cracks found on shafts, gears, and forgings.

Grinding cracks are dangerous because, once localized areas of material are highly stressed, they can crack intensely. These cracks are especially common in materials that have undergone heat treatment, hardening, or are made of high-carbon steel. During the grinding process, localized heating combined with entrapped stresses can lead to surface cracking.

Impact on Components:

These cracks are particularly harmful to components subject to cyclic loading, such as pistons, pinions, and shafts. Although the cracks appear only on the surface, they are easily detected using non-destructive testing (NDT) methods.

NDT Methods for Detecting Grinding Cracks: Magnetic Particle Inspection (MPI):

NDT Methods for Detecting Grinding Cracks:

• Magnetic Particle Inspection (MPI):

• Magnetic Particle Inspection (MPI):
  MPI is an effective technique for detecting surface cracks in ferromagnetic materials. Due to their networked nature, these cracks can be easily detected using MPI, even with non-fluorescent methods.
  For better visibility and detectability, Fluorescent MPI testing is recommended, as it can detect very fine cracks that may be missed with conventional visual inspection methods.

Conclusion:

While grinding cracks may appear minor, they can propagate rapidly and compromise the integrity of the material. If left unaddressed, these cracks can lead to severe structural failures. Therefore, it is essential to machine out these cracks completely or reject the affected material altogether to ensure the reliability and safety of the component.
