NDT, or Non-Destructive Testing, is a technique used to inspect and evaluate materials, components, or systems without causing damage. The purpose of NDT is to detect defects, discontinuities, or deviations from standard specifications while ensuring the asset's integrity and usability are preserved.
This method is widely applied across industries such as manufacturing, aerospace, construction, and energy to assess quality and ensure safety.
Common NDT methods include:
What is Dye Penetrant Testing?
Dye Penetrant Testing (DPT), also known as LiquidPenetrant Testing (LPT), is a widely used Non-Destructive Testing (NDT) method designed to detect surface-breaking defects in non-porous materials such as metals, ceramics, and plastics. This method is effective for identifying cracks, seams, porosity, or other discontinuities on the surface of a component.
Key Steps in Dye Penetrant Testing:
1. Surface
Cleaning:
The test surface is cleaned thoroughly to remove dirt, grease, or contaminants
that could block defect detection.
2. Application
of Penetrant:
A colored or fluorescent dye (penetrant) is applied to the surface and allowed
to seep into surface defects by capillary action.
3. Dwell
Time:
The penetrant is left on the surface for a specific period (dwell time) to
allow it to enter any defects.
4. Excess
Penetrant Removal:
Excess dye is carefully removed from the surface without disturbing the
penetrant trapped in defects.
5. Application
of Developer:
A developer is applied to the surface, drawing out the penetrant from the
defects to create a visible indication.
6. Inspection:
The surface is inspected under normal light or UV light (for fluorescent
penetrants) to identify and evaluate any defects.
7. Post-Test
Cleaning:
After inspection, the surface is cleaned to remove all residues.
Advantages of DPT:
Limitations of DPT:
DPT is commonly used in industries such as aerospace, automotive, construction, and manufacturing to ensure the safety and integrity of critical components.
What is Magnetic Particle Testing?
Magnetic Particle Testing (MPT), also known as Magnetic Particle Inspection (MPI), is a Non-Destructive Testing (NDT) method used to detect surface and near-surface defects in ferromagnetic materials such as iron, nickel, cobalt, and their alloys. This method relies on the principle that magnetic fields behave differently in the presence of defects or discontinuities.
How Magnetic Particle Testing Works:
1. Magnetization
of the Test Object:
The material being tested is magnetized using either a direct (electric
current) or indirect (external magnetic field) method.
2. Formation
of Magnetic Flux:
When magnetized, the material develops a magnetic flux. If there is a surface
or near-surface defect (e.g., cracks, seams, voids), the magnetic field is
disrupted, creating a "leakage field."
3. Application
of Magnetic Particles:
Fine magnetic particles (dry powder or wet suspension) are applied to the
surface. These particles are attracted to the leakage fields at defect
locations, forming visible indications.
4. Inspection:
The surface is visually inspected under appropriate lighting conditions or UV
light if fluorescent particles are used. Defects appear as visible lines or
patterns.
5. Demagnetization
and Cleaning:
After testing, the material is demagnetized, and residual particles are cleaned
off.
Advantages of Magnetic Particle Testing:
Limitations of Magnetic Particle Testing:
Applications of Magnetic Particle Testing:
MPT is widely used in industries such as:
MPT is an essential method for ensuring the safety and reliability of critical components in various industries.
What is visual Testing?
Visual Testing (VT) is a Non-Destructive Testing(NDT) Non-Destructive Testing (NDT)method that involves the direct observation of a material or structure to detect surface defects, discontinuities, or irregularities. It is one of the simplest and most widely used methods for evaluating the condition of components, requiring minimal equipment, often limited to just the human eye or magnifying tools.
How Visual Testing Works:
1. Inspection:
The inspector visually examines the surface of the object for visible signs of
damage, such as cracks, corrosion, misalignment, or wear.
2. Tools
and Techniques:
Depending on the complexity of the inspection, additional tools such as
magnifying glasses, mirrors, borescopes, or digital cameras may be used to view
hard-to-reach areas or enhance clarity.
3. Documentation:
Findings are documented, often with photographs or detailed records, to aid in
analysis and decision-making.
Advantages of Visual Testing:
Limitations of Visual Testing:
Applications of Visual Testing:
Visual Testing is essential for routine inspections and is often the first step in assessing the condition of equipment or materials.

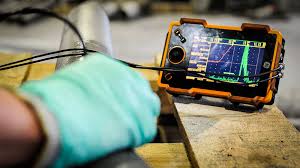

What is Ultrasonic Testing?
Ultrasonic Testing (UT) is a Non-Destructive Testing (NDT) technique that uses high-frequency sound waves to inspect and evaluate materials, components, or structures. This method is widely employed to detect surface and subsurface defects, measure material thickness, and assess the integrity of a component without causing damage.
How Ultrasonic Testing Works:
1. Generation
of Sound Waves:
A transducer generates high-frequency ultrasonic sound waves and sends them
into the test material.
2. Propagation
Through the Material:
The sound waves travel through the material and reflect back when they
encounter a boundary (e.g., a defect, void, or the opposite surface of the
material).
3. Detection
of Reflected Waves:
The reflected waves are captured by the transducer or a separate receiver and
converted into electrical signals.
4. Analysis
of Signals:
The signals are displayed on a screen as waveforms (A-scan, B-scan, or C-scan),
which are analyzed to identify and evaluate defects or determine material
thickness.
Key Components of UT Equipment:
Advantages of Ultrasonic Testing:
Limitations of Ultrasonic Testing:
Applications of Ultrasonic Testing:
UT is commonly used in industries such as:
Ultrasonic Testing is a versatile and reliable method for ensuring the safety and quality of critical components across a variety of industries.
What is Radiographic Testing?
Radiographic Testing (RT) is a Non-Destructive Testing (NDT) technique that uses X-rays or gamma rays to inspect and evaluate the internal structure of materials, components, or assemblies. This method is effective for detecting internal defects such as cracks, voids, inclusions, or porosity without damaging the test object.
How Radiographic Testing Works:
1. Radiation
Source:
A source of X-rays or gamma rays is directed at the test object.
2. Interaction
with the Material:
The radiation penetrates the test object, and its intensity is affected by the
material's density and thickness. Defects cause variations in radiation
absorption.
3. Capture
of Radiographic Image:
The radiation that passes through the material is captured on a detector, such
as:
4. Analysis
of the Image:
The resulting image is examined to identify variations in density that indicate
the presence of defects.
Advantages of Radiographic Testing:
Limitations of Radiographic Testing:
Applications of Radiographic Testing:
RT is widely used in industries such as:
Radiographic Testing is a vital method for ensuring the safety and reliability of critical components, especially in industries where internal defects could lead to catastrophic failures.
4o
What is Eddy Current Testing?
Eddy Current Testing (ECT) is a Non-Destructive Testing (NDT) method that uses electromagnetic induction to detect defects in conductive materials. It induces an eddy current field in the material, and changes in the field indicate defects. ECT is portable, provides real-time results, and is ideal for onsite inspections, especially for complex shapes and geometries.
Applications:
ECT is effective for quick, efficient inspections and real-time decision-making, especially in industries like aerospace, automotive, and manufacturing.
What is Phased Array Ultrasonic Testing?
Phased Array Ultrasonic Testing (PAUT) is an advanced Non-Destructive Testing (NDT) technique that uses a probe consisting of multiple small ultrasonic transducers. These probes can be activated individually, and by adjusting the timing of the pulses, ultrasonic waves can be steered at different angles and focal distances. This allows for the sweeping of sound waves across the material, enabling comprehensive coverage of the object being tested.
PAUT offers high precision and flexibility, making it especially useful for complex inspections, as it provides detailed images and better control over wave direction.
What is Infrared Thermography Testing?
Infrared Thermography Testing uses infrared cameras to detect and measure thermal energy emitted by objects, which is invisible to the naked eye. The camera maps the temperature variations across the object, capturing heat flow to, through, and from it. Analyzing these thermal images can reveal issues such as corrosion, erosion, or material defects like air gaps or inclusions.
Since most objects tend to heat up before failing, thermography is a vital diagnostic tool for identifying equipment deterioration. Low thermal energy in an object may indicate power loss or energy faults, making it useful for detecting potential failures early.
What is Magnetic Flux Testing?
Magnetic Flux Leakage (MFL) is a Non-DestructiveTesting (NDT) method used to detect corrosion, pitting, or erosion in steel structures such as pipes, floors, and storage tanks. These issues can result in product loss and equipment damage, making it essential to inspect such components to prevent potential failures.
MFL offers a fast and reliable way to inspect steel structures. Our expert inspectors, with years of experience, use advanced MFL instruments to conduct thorough inspections and map the structures.
In this method, permanent magnets or electromagnets are used to magnetize the part to its saturation point. Any changes in the magnetic field caused by defects result in magnetic flux leakage. This leakage is then analyzed to determine the location and nature of the defect, whether near the surface or deeper within the material.
What is Time of Flight Diffraction?
Time of Flight Diffraction (TOFD) is a highly reliable Non-Destructive Testing (NDT)method used for both pre-service and in-service inspection of welds. Accurate assessment of welded joints is crucial for ensuring the stability, safety, and integrity of parts to maintain their reliability.
In TOFD, two probes are placed on opposite sides of the test piece: one acts as a transmitter and the other as a receiver. When no flaw is present, the receiver detects two waves: one travels along the surface, and the other reflects from the backwall. If a defect is present, diffraction occurs at the tip of the discontinuity. By measuring the time it takes for the pulse to travel, the depth of the discontinuity can be calculated using trigonometry.
What is Leak Testing?
Leak Testing (LT) is a Non-DestructiveTesting (NDT) method used to detect leaks and measure leakage rates in pressurized or evacuated systems. Compared to other methods—whether surface-based (MT, PT) or volumetric (UT, RT)—LT offers a higher degree of sensitivity for locating leaks or measuring leakage.
Advanced LT is categorized into three main types by the American Society of Non-Destructive Testing:
These are some of the most commonly used NDT methods, although many other variations and techniques are employed depending on the specific application and requirements.
